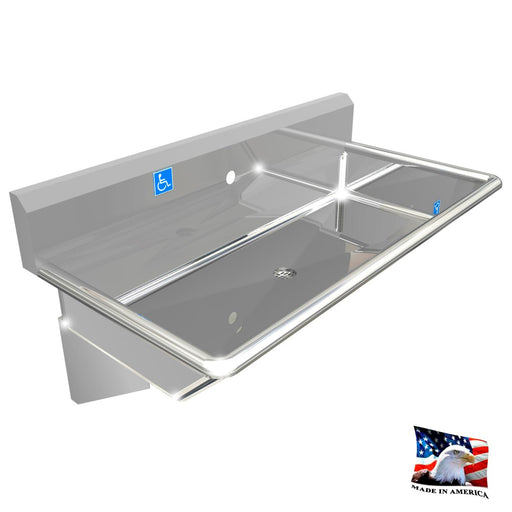

H.D. 14GA Multi-Station Wash up Sink, 40" | ADA-011E402065H


Shop our ADA Compliant model commercial stainless steel sink. If you do not see an option you need, please call us! We can fabricate any sink needed.

Model Number: ADA-011E402065H


Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

  • Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 #4
  • Made in the USA
  • Fully seamless welded corners
  • Fully polished to a brush finish No. 4
  • Fully welded 1-1/2" Drain with fixed screen
  • ETL and NSF Approved
  • ADA Compliant
  • Includes Electronic Faucet and soap dispenser.
  • Free Standing
  • Low Profile Back Splash

Sink dimensions for all varieties:

40" Long x 20" Wide x 6" Deep

Back Splash Dimensions for all varieties

40" Long x 2" Wide x 5" High


Electronic Faucet
Quantity 1
  • Electronic Faucet ADA compliant (**COMPLIES WITH CALIFORNIA LAW AB1953-NO LEAD** )

  • Durable chrome plated brass faucet

  • Low-battery indicator light, Sensor range adjustment

  • Chrome-plated tubular brass 6" gooseneck spout with swivel action

  • AC/DC waterproof control module

  • AA batteries (Not Included)

  • 100-240 VAC adapter

  • Temperature hot & cold control mixing water valve

  • Hot and cold supply lines

  • 90 Degree elbow if needed
  • Installation guide



Soap Dispenser

Quantity 1

  • Stainless Steel 40 Oz Horizontal Soap Dispenser
  • For Liquid soap only


All accessories have a 1-year limited warranty.


Stainless Steel Straight Legs:

3 Stainless Steel welded braces at legs16 gauge (0.0625") diameter 1-5/8" OD at back, left and right sides
4 Stainless Steel legs welded to sink body and braces, diameter 1-5/8" OD 16ga (0.0625")
with adjustable floor plate 1" height,
10 2-1/2" Standard screws

Estimated Weight: 100 lbs

Estimated Shipping Dimensions: 48" Long x 25" wide 30" Height

Sink ships via a third-party freight company. Estimated transit times vary depending on the state we ship to. For an accurate transit time, please contact us.

BSMSS only ships within the continental U.S. and Canada. Please call for a quote for shipping outside the US. We do not ship to P.O. Boxes.
